PATTERN MAKER

CP-400AT Lens pattern maker

A standard pattern from the lens you already have.

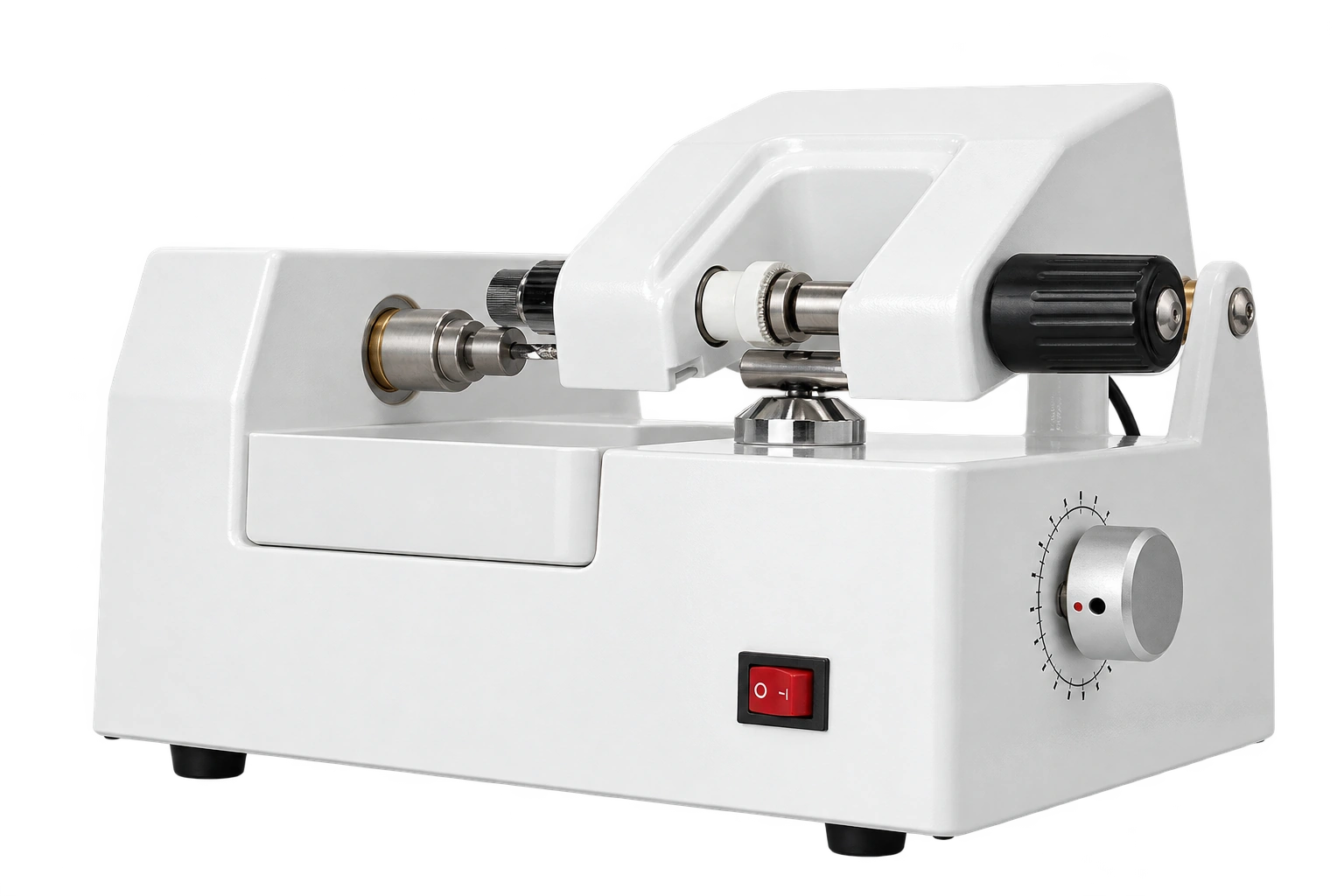

An optical pattern maker for producing a standard pattern using a demo lens or an existing spectacle lens as the reference. A milling cutter, a pivoting clamp and a size adjustment dial keep the pattern-making work at the bench.

70 WRated power

Size adjustmentSide-mounted fine adjustment

225 × 175 mmBench footprint

4 kgNet weight

Ask about CP-400AT ↗Specifications ↓

Confirm the supply version and plug type on your quotation.

Functions

What the CP-400AT does

01 / REFERENCE-BASED

Copy a pattern or an existing lens

Use an eyeglass pattern, a demo lens or an existing spectacle lens as the reference to make a standard pattern.

02 / CLAMPING

Convenient, secure lens holding

The dedicated pivoting lens clamp makes setup straightforward. Tighten the black hand knob to hold the reference securely.

03 / SIZE CONTROL

Adjust the finished pattern size

Use the side-mounted dial to adjust the cutting size to suit the pattern you need.

PATTERN-MAKING WORKFLOW

Made for everyday work at the bench.

04 / INTERCHANGEABLE BASES

Change between three base styles

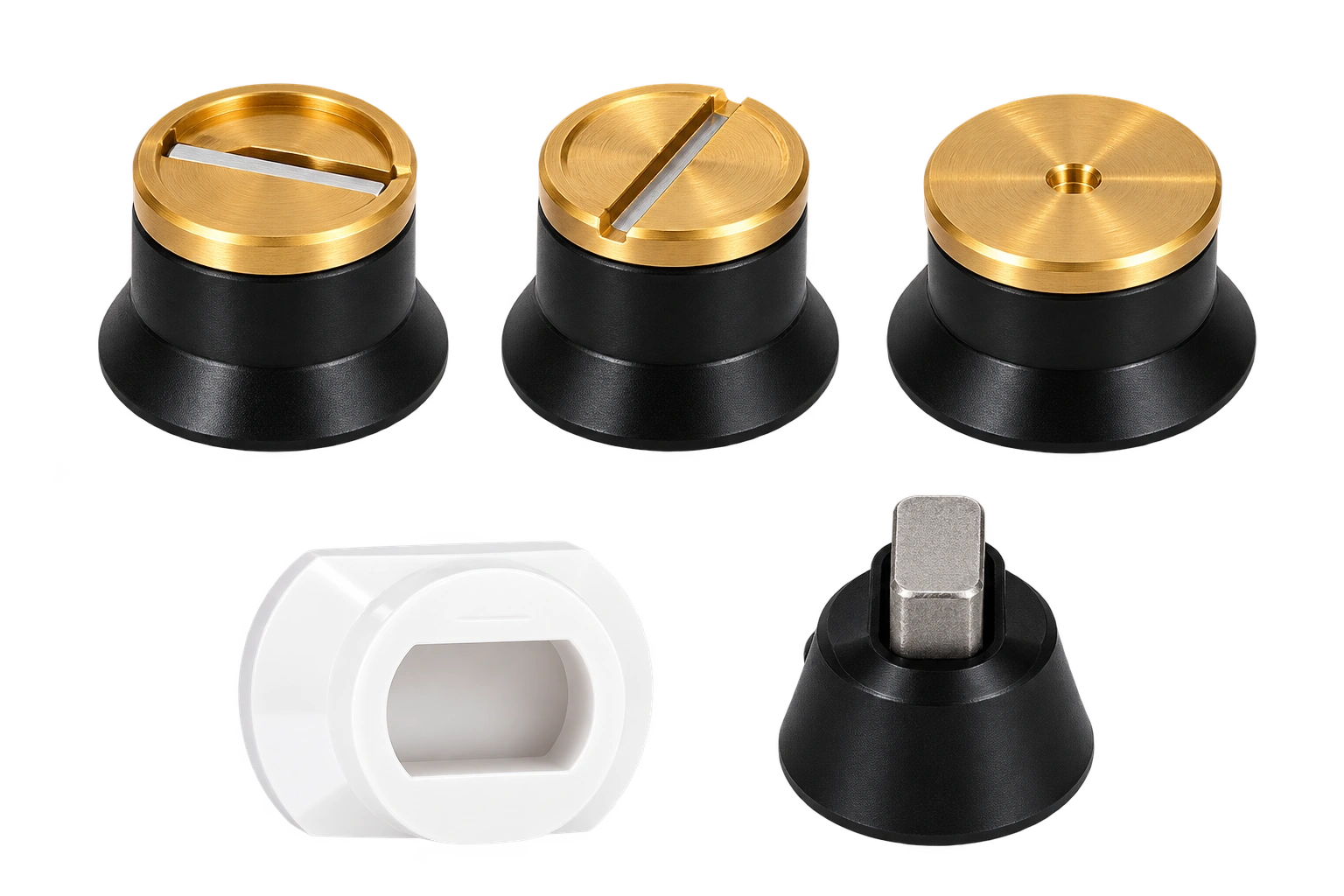

Takubo-, Briot- and Topcon-style suction-cup bases can be changed conveniently to suit your pattern setup.

05 / CUTTING & FINISH

Fast cutting. High machining accuracy.

Cut patterns quickly with high machining accuracy and a smoother finish than conventional pattern makers, for easier everyday pattern preparation.

06 / HANDLING

Safer pattern loading and unloading

The holding assembly is designed for safer insertion and removal of the pattern and convenient handling between jobs.

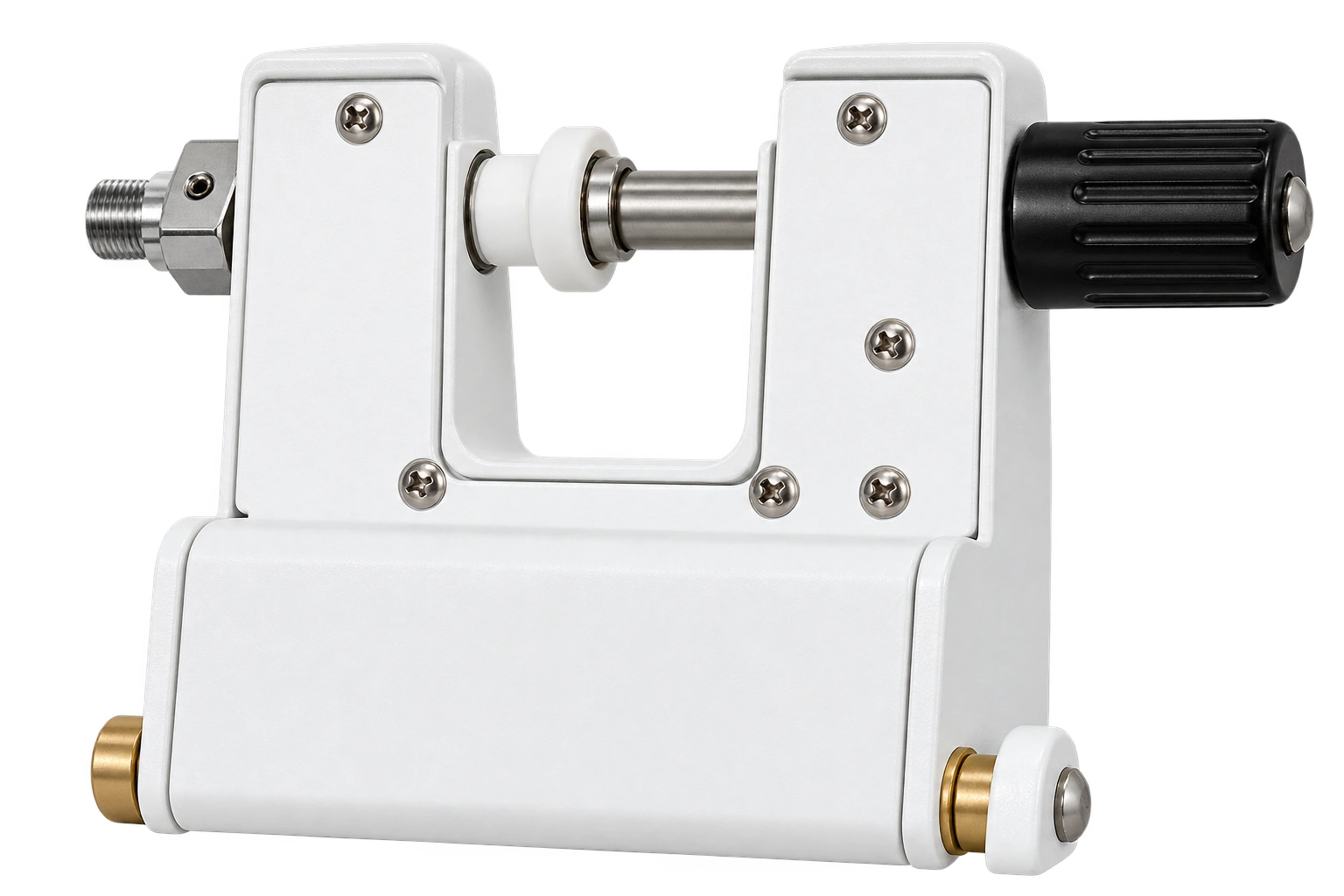

CP-400AT white lens clamping assembly with metal spindle and black tightening knob

THE WORKING ASSEMBLY

Hold the reference.
Control the pattern.

Milling cutter: The cutting spindle sits on the left of the working area.
Lens clamp: The white pivoting assembly supports the lens-holding spindle.
Holding knob: Tighten the black knob to secure the lens setup.
Size dial: Use the side-mounted dial for fine adjustment of the finished pattern size.

Specifications

CP-400AT in figures

Confirm the electrical version, supplied accessories and packing for your order.

Model: CP-400AT
Equipment type: Lens pattern maker
Power: 70 W
Supply versions: 220 V / 50 Hz or 110 V / 60 Hz
Unit dimensions: 225 × 175 × 170 mm
Package dimensions: 280 × 235 × 270 mm
Net / gross weight: 4 kg / 4.35 kg

Buyer’s guide

Before you order

Match the pattern workflow

Confirm the pattern type, holder and edging equipment used in your workshop before ordering.

Confirm the adapter set

The listed accessory set includes Takubo-, Briot- and Topcon-style suction-cup bases for easy changes. Confirm the required base and exact fit for your equipment when ordering.

Select the electrical version

Specify the required 220 V / 50 Hz or 110 V / 60 Hz version and plug type in your enquiry.

Is this a lens edger?

The CP-400AT makes a standard pattern from a reference lens. Lens edging is a separate processing step.

What is included?

The reference photos show adapter bases, holders, a rubber clamping piece, brushes and a manual. Ask for the confirmed packing list for the quoted configuration.

CP-400AT / QUOTATION

Plan the next addition to your bench.

Share the quantity, supply voltage, plug type and destination.

Request CP-400AT details ↗
